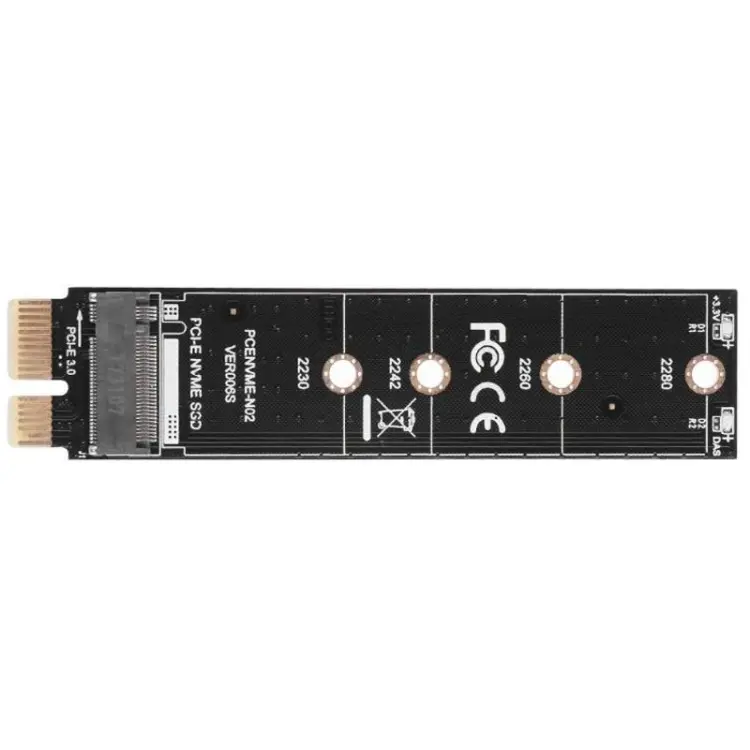

1. M.2 NGFF to PCI-E 1x riser card, use this riser card to convert common PCI-E 1X interface to M.2 NGFF interface.
2. There are 4 fixing holes on the board, respectively 22 x 32mm, 22 x 42mm, 22 x 60mm, 22 x 80mm.
3. The riser card adopts differential line pair routing and supports PCI-E 3.0 1X signals.
4. Support for Samsung PM970 980 981 PM961, 960EVO, SM961, PM951, SM951, INTEL 600P, 760P Lite T10 and other NVME protocol M.2.
5. M.2 of SATA protocol is not supported.
6. The standard version supports NVME M.2 of 2230, 2242, 2260, 2280
Parameter:
1. Product color: black PCB
2. Dimensions and weight: 30 grams, length 43 x width 33 x height 9.9mm
3. Product interface: KEY-M PCI-E 1X
4. Support system: WIN10 WIN11 is recommended
